Accuscale Series 8S Plate & Frame Filter

Designed to work on a wide range of high efficiency, ultra-fine filtration applications

Product Documents

Product Documents

Add To Quote
Category: Tag:

Description

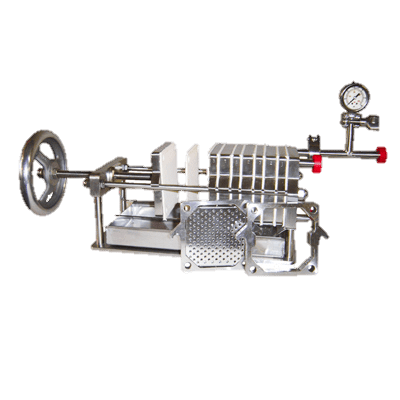

These 8-inch square (20 cm square) plate and frame filters are one of the most economical models ErtelAlsop manufactures. Bench top or cart mounted, these filters are able to accept up to twenty (20) filter pads, and they are designed to work in a wide range of high efficiency, ultrafine filtration applications. As with all ErtelAlsop plate and frame filter presses, the Model 8S has the same component flexibility as other models, accepts various thickness filter media, and is internally ported eliminating the need for gaskets as well as concerns about compatibility and cross-contamination.

Additional information

Markets

Biopharmaceutical, Food & Beverage, Industrial

Materials

316 Stainless Steel

Features

Standard Features
• 316L SS
• BioClean Outlet Plates
• Internal Ports
• 3/4 inch Tri-Clamp Fittings
• Hand Hydraulic Closure
• Bench Top Mounted
Optional Features
• Twenty (20) pad capacity expansion
• Variable Inlet Frame Thickness
• Polypropylene Plates and Frames
• Dividing Heads
• Weld-Free Plate Design
• Thorough Wash Capability
• Cart-Mounted
• Pressure Gauge
• Tubing
• Pump
• Motor

Applications
• Small Batch Cosmetics
• Wine Production
• Distilled Beverages
• Cough Syrups
• Flavors
• Fragrances
• Small Volume Parenterals
