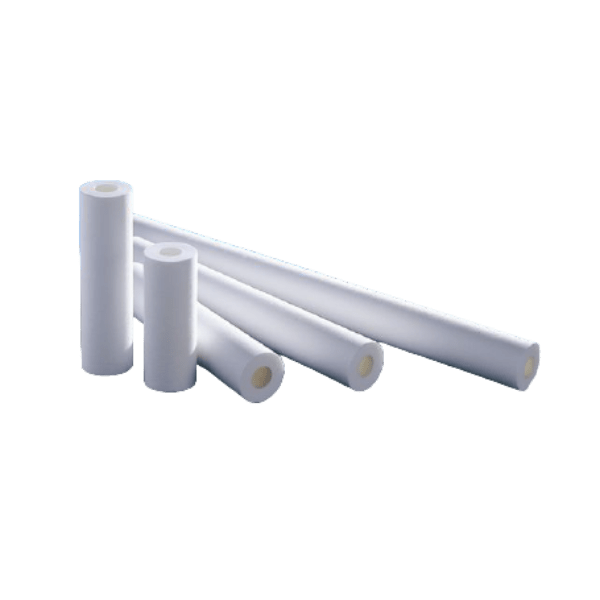

CP Filter Cartridge

Name: CP Filter Cartridge
SKU: 1711

Self-Bonding Binder-Free Cartridge Filter

Categories: Cartridge Filters, Melt Blown Tag: JNC

Description

Structure

Only polyolefin thermally bonded bi-component fibers (ES fibers) are used, and the fiber-to-fiber bond forms a stable porosity.

Advantages

The ES fibers uniquely developed and patented by JNC are used, and the fiber-to-fiber bond at each contact point featuring integral rigid thermally bonded construction enables consistent filtration and eliminates pore size variability and media migration.
The density graded construction provides long service life.
The simple but clean and rigid structure utilizing state-of-the-art fiber technology allows for longer service life and higher throughputs.
A rigid filter structure of fused ES fibers in a three dimensional network with a high tolerance for differential pressure is achieved.
The diameter of the structural fibers is changed for every grade, and the grades are clearly differentiated from a nominal filtration size of 1μm to 200μm.
FDA approved materials are used, enabling clean filtration

Markets	Food & Beverage, Industrial, Semiconductor
Materials	Polyolefin
Retention Ratings	Nominal
Features	Quality CP medium Complies with CFR 21 FDA regulations Does not include substances subject to the RoHS Directive Does not include substances subject to the REACH regulation NSF certified elements of DOE type Production at ISO 9001 certified factory Production at ISO 14001 certified factory Applications Cleaning water, pre-filter for ultra pure water etc. Paint Ink Resins Adhesives Catalysts Solvents Surfactants etc. Tea, Juices, Wine, Spirits, Soy sauce, Soups, Vinegar, Syrup etc. Pure water, Optical films, PCB, FPC, Shadow masks, Lead frames, TAB, Electrolyzed copper foils, Ceramic capacitors , Resist etc.
