Electric Utility Lenticular Filter Housing

Specifically designed for the Electric Utility Industry

Add To Quote

Description

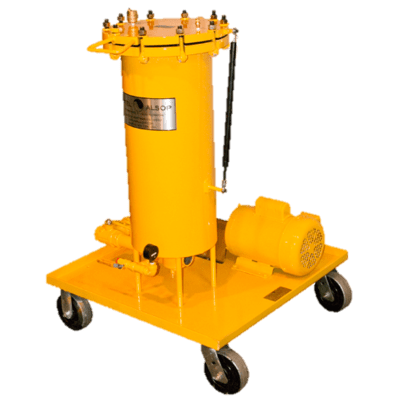

The ErtelAlsop 12UF Electric Utility Filter Housing series is specially designed for use in the electric utility industry. Used in the filtration of steam turbine, voltage regulator and circuit breaker oils for removal of water from insulating oil, and to eliminate water induced hazes, these units can be custom fabricated to fit your specific application.

The ErtelAlsop series of utility filters and filter units are available in a wide range of configurations. Available in Portable Carts, Handtruck or Over-the-Road Trailer Designs.

Versatility and perfomance; Coupled with the ErtelAlsop Pak lenticular filter module concept of liquid filtration, you can obtain filtration of insulating oils which meet original manufacturers specifications. Flow rates for filter units range from 15 GPM to 100 GPM.

Materials of construction include Carbon Steel, Stainless Steel or Polypropylene. Look for the AquaKv-Pak, ZetaDri-Pak and Disc-Pak for maintaining your insulating oil to your Kv specification.

Additional information

Markets

Industrial

Materials

316 Stainless Steel

Features

Standard Features
• Yellow
• Wheels
• Fully Enclosed Design
• Cart Mounted
Optional Features
• Ergonomic Horizontal or Vertical Filter Housing Design
• Over-The-Road Systems
• Complies with DOT Regulations
• Enclosed or Open Trailer Systems
• Portable Cart Designs
• Hand Truck Designs
• Designed to your requirements
• Carbon Steel Painted Filter Units
• Stainless Steel Filter Units
• 50 gallon to 550 gallon make up tanks
• Positive Displacement Process Pumps
• NPT Fittings
• Quick Valve Disconnects
• 3 Way Valves—Allows transfer without filtration
• 4 Way Valves— Allows for recirculation without disconnecting hoses
• Inlet/Outlet Process Liquid Hoses
• Hose reels
• Vacuum Pumps
• Differential Pressure Gauges
• Differential Pressure Switches
• Auto Air Vents

Applications
• Transformer Oil
• Circuit Breaker Oil
• Turbine Lube Oil
